标准号：ISO/TS 10303-1009-2001
实施状态：作废
中文名称：工业自动化系统和集成 产品数据表示和交换 第1009部分：应用模式：形状外观和层
英文名称：Industrial automation systems and integration - Product data representation and exchange - Part 1009: Application module: Shape appearance and layers
发布日期：2001-09
被替代标准：ISO/TS 10303-1009-2008
起草单位：ISO/TC 184
标准简介：This part of ISO 10303 specifies the application module for the assignment of visual attributes and layers to shape models, geometric and topological elements.
The following are within scope of this part of ISO 10303:
— assignment of layers to shape items;
— assignment of visual attributes to shape items;
— assignment of colour to surfaces;
— assignment of visual attributes to curves belonging to surfaces. The following are outside the scope of this part of ISO 10303:
— definition of views on which shape models, geometric elements or annotation are presented;
— specification of shape models.
文件格式：PDF
文件大小：412.56KB
文件页数：30
（以上信息更新时间为：2019-11-23）

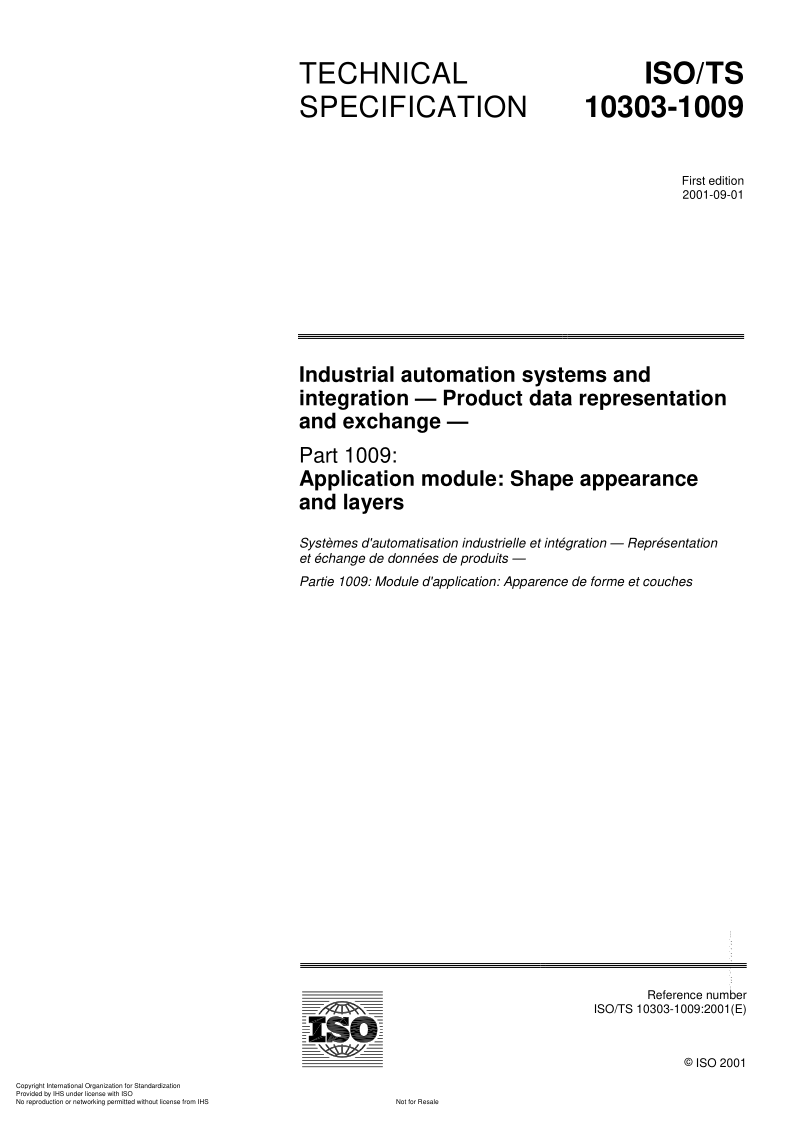

ISO_TS 10303-1009-2001 工业自动化系统和集成 产品数据表示和交换 第1009部分：应用模式：形状外观和层.pdf
